Kerbl Pasture Pump P100 3/4 Connection

Weed pump P100
• Extremely slight pasture pump thanks to aluminum handle and turning points with sliding bearings
• Drinking bowl of solid cast iron
• Modern design
• Always fresh and pure water
• Minimum maintenance costs
• Pour water from a depth to 8 m
• 0.6 liters per stroke (depending on the suction depth)
• For pipe and hose connections (hose inner diameter 19-25 mm)
• Suitable for cattle and horses

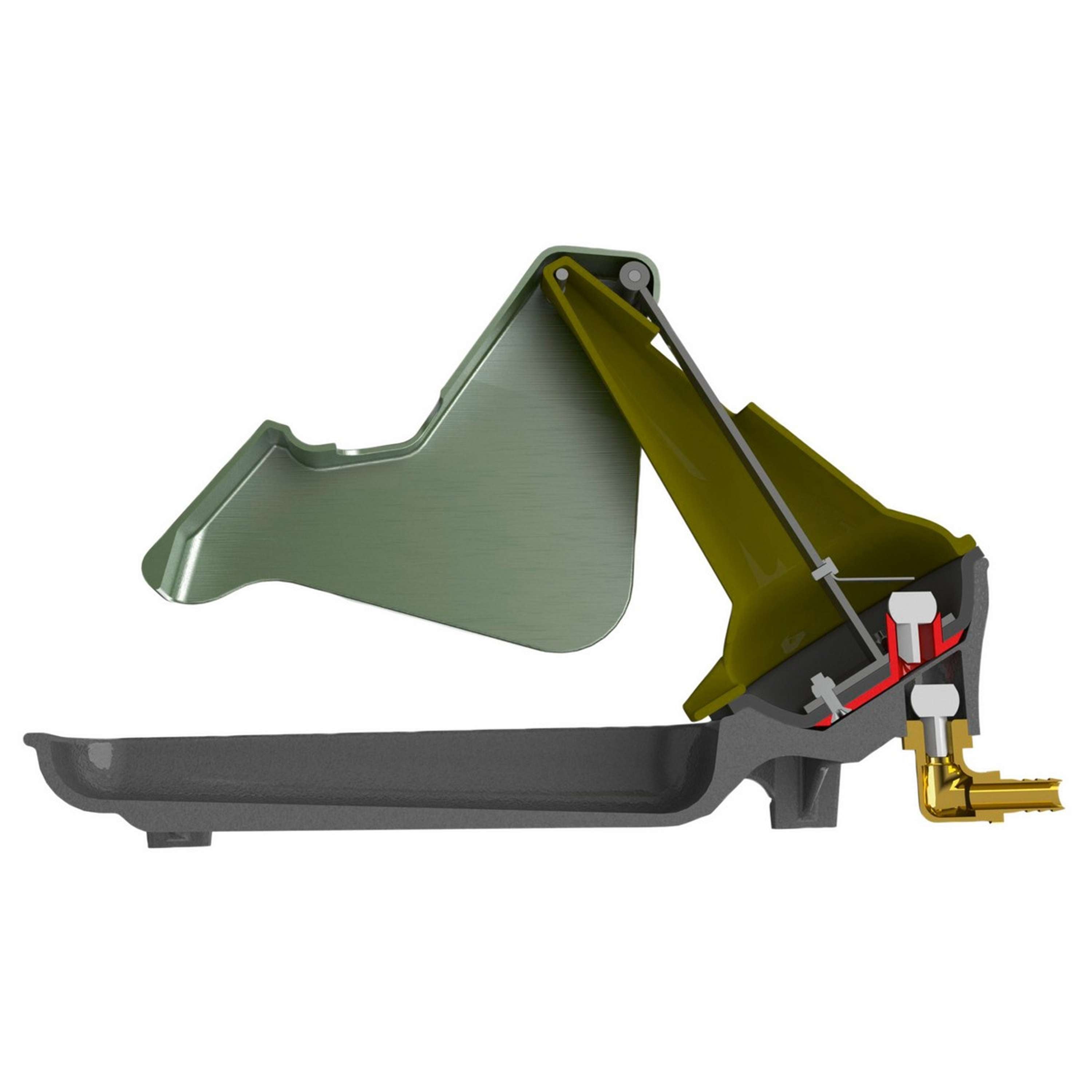

Operation
The handle is pushed forward by the head of the animal. The tie rod lifts the membrane and sucks the water into the membrane space.
Due to gravity and tension in the membrane, the lever moves backwards. The water is moved from the membrane space and flows into the drinking bowl. The non-return valve ensures that the water is always aspirated and pumped in the right direction.
Some of the required water stays on the top of the membrane and flows into the drinking bowl as soon as the diaphragm is returned to the next round, so when the animal presses on the lever again.
