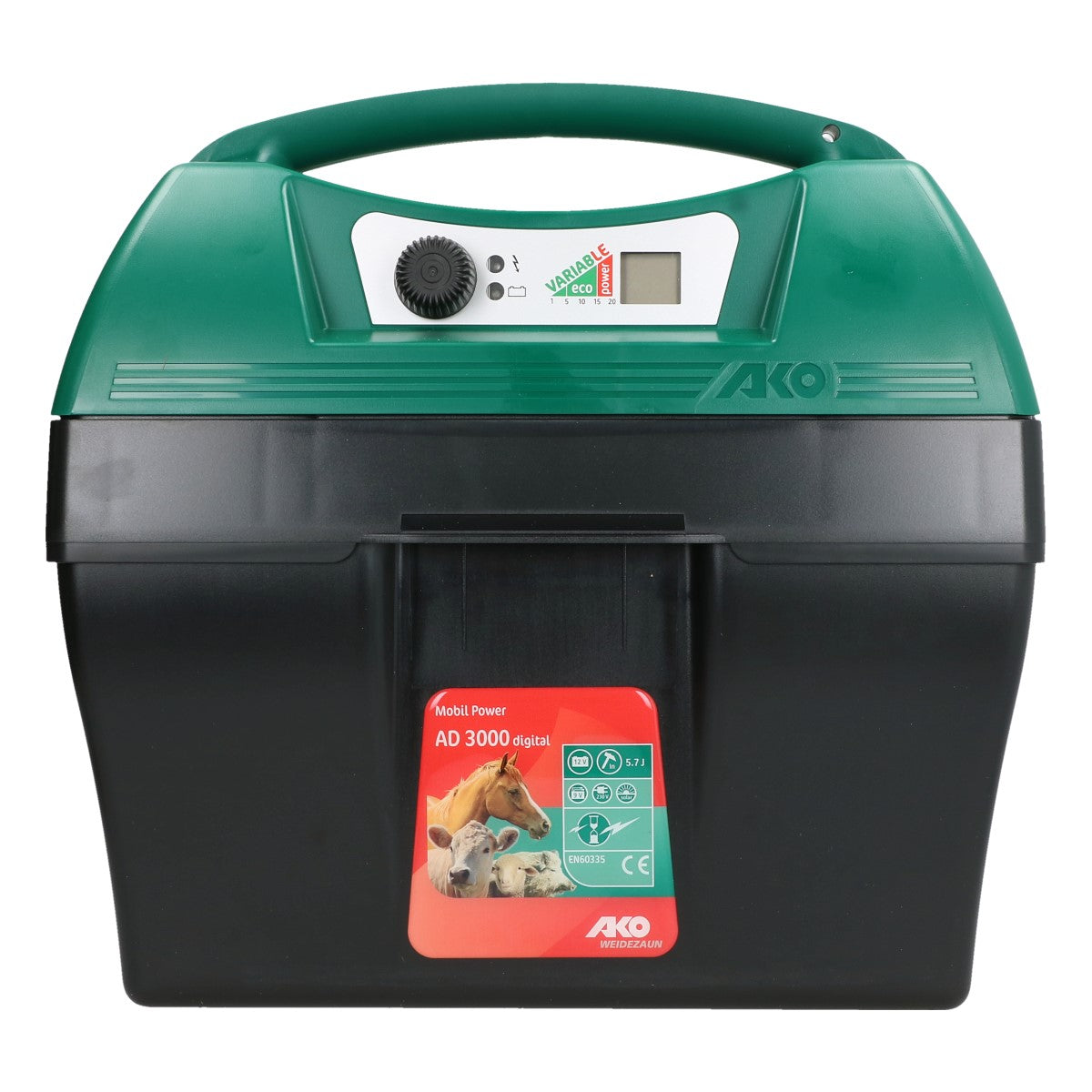

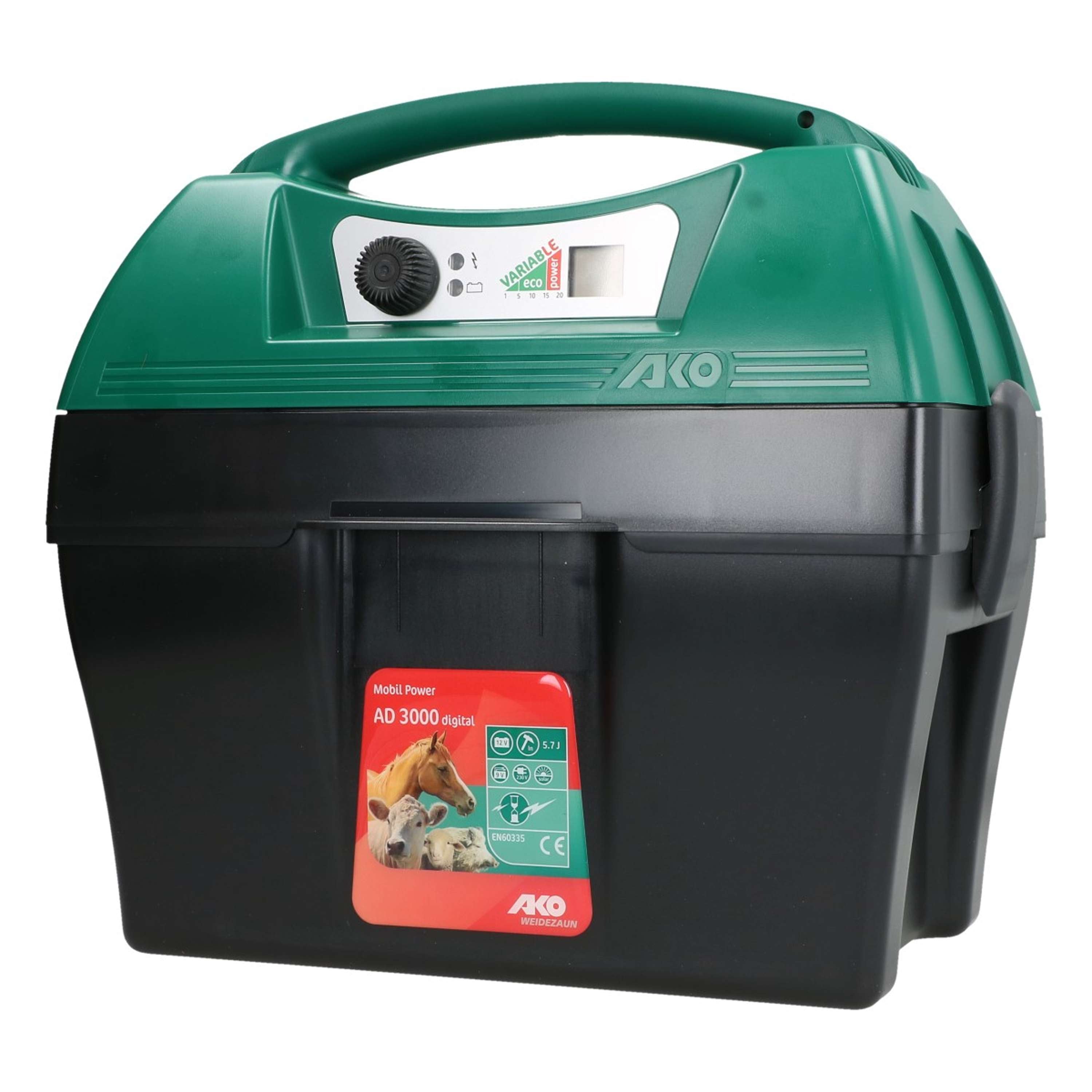

Ako Mobil Power Ad 3000

Powerful 12 V
Mobile device battery devices with high shock strength, suitable for long
fences with vegetation and for insensitive, robust animals. Produced according to the current European safety standard EN60335. 12 V Discharge Protection. Digital display for output voltage, power and battery
battery voltage. Two separate LED lights for fuse voltage and battery control. With the control knob, the impact strength can be adjusted continuously
Power consumption can be controlled efficiently at the fading length. Microprocessor controlled power saving. Power supply via 230 V AC adapter or 9 V battery. Integrated solar charging system. Connection for solar panel.



Technical data for power supply via 12V battery of AD3000:

- max. voltage: 10.800 V

- voltage at 500 ohm: 6.000 V

- charge energy: 5.70 J

- max pulse energy: 3.00 J

- consumption: 17-290 mA

- theoretical frame length: 90 km

- max. grid length without vegetation: 30 km

- maximum frame length light vegetation: 10 km

- max. grid length heavy vegetation: 4 km

- Maximum number of nets: 12

- Number of recommended earth rods 1m: 3

- Number of recommended earth rods 2m: 2/2/3



Technical data for power supply via 9V battery of AD3000:

- max. voltage: 9.800 V

- voltage at 500 ohms: 4000 V

- charge energy: 0.75 J

- max pulse energy: 0.50 J

- consumption: 17-65 mA

- theoretical focal length: 12 km

- max. fence length without vegetation: 5 km

- maximum frame length light vegetation: 3 km

- max. grid length heavy vegetation: 0.5 km

- Number of recommended earth rods 1m: 1
